Description

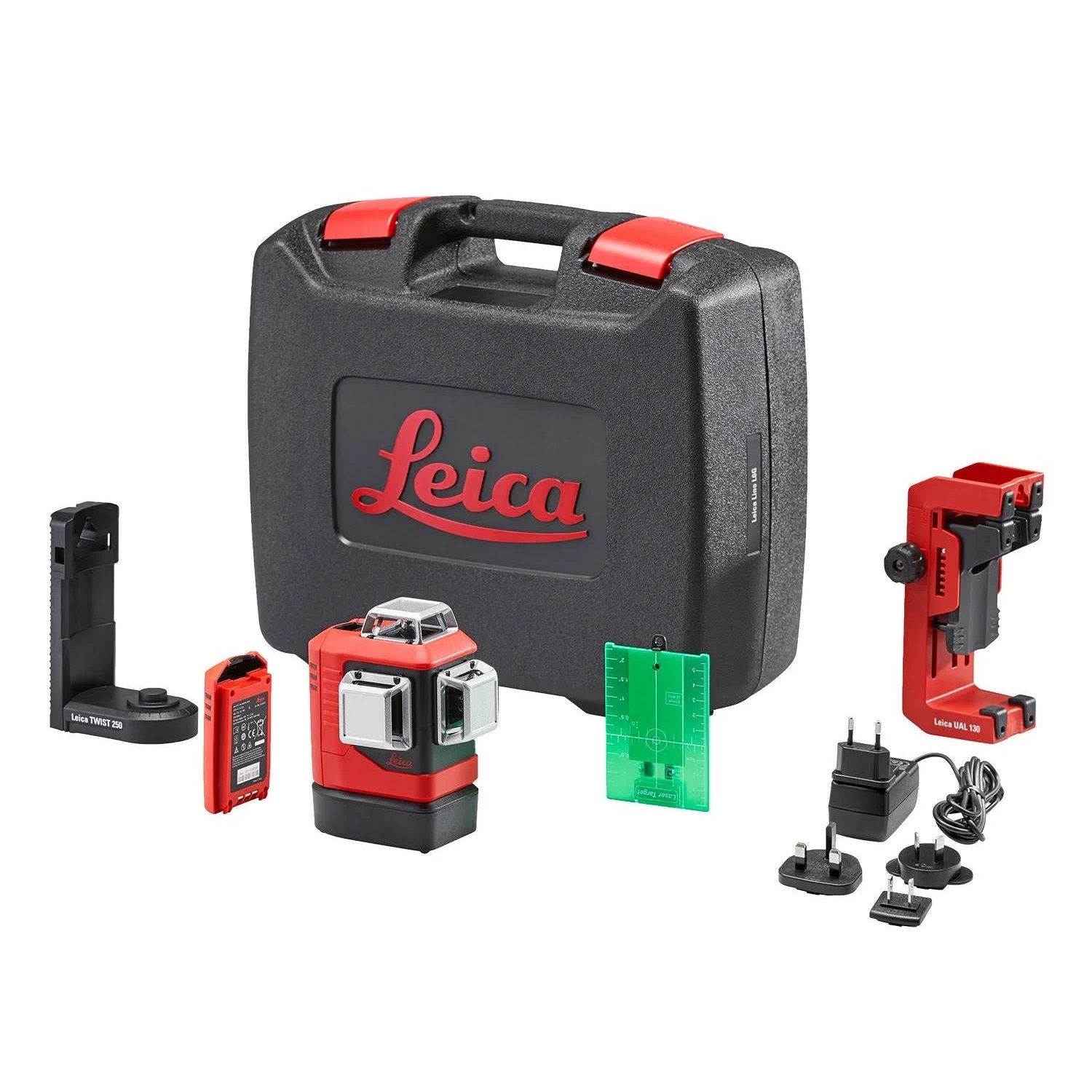

Product Description Description: 360° green laser line projection for multi-directional alignment – perfect for large and bright environments. The laser’s vertical lines are easily adjusted once the plumb point (cross-section of two vertical lines), which is located outside the device, is set Features: Horizontal and two vertical 360° green laser lines Best visibility due to green Ultra-power laser diodes Self-leveling over wide range Fixed plumb point due to integrated base Adjustable strength of laser lines Operating range of up to 35 metres Li-Ion power for up to 11 h Uninterrupted working with Triple-Power concept Smart magnetic adapters versatile usage Technical Data: Beam horizontal 360° Beam vertical 2 x 360° Intersection points up, down, right, left, front, back (90° / 180°) Range / diameter* 35 m / 70 m (115 ft / 230 ft) Range / diameter* with Leica RGR 200 receiver 70 m / 140 m (230 ft / 460 ft) Levelling accuracy ± 0.2 mm/m (± 0.002 in/ft) Horizontal- and vertical line accuracy ± 0.3 mm/m (± 0.004 in/ft) Intersection point accuracy ± 0.2 mm/m (± 0.002 in/ft) Self-levelling range ± 4° Self-levelling time < 3 sec Fine adjustment ± 10° around vertical intersection point Out-of-level warning yes – blink lines every 5 s Levelling pendulum (lockable) Laser 525 nm / class 2 (acc. to IEC 60825-1) Protection class IP54 (dust and splash water) Battery type Lino Li-Ion battery pack 5200mAh / 18.7Wh or 3 x AA Alkaline Laser line intensity (selectable) 100 %, 75 %, 50 % Operating time with Li-Ion up to 11 h (3 beam, 50 % power) Operating time with Alkaline up to 8 h (3 beam, 50 % power) Dimensions 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in) Weight 781 g (1.71 lbs) Operation temperature -10 to +50° C (14 to 122° F) Storage temperature -25 to +70° C (-13 to +158° F) Laser line width @ 5 m distance (16.4 ft) < 2 mm (< 0.08 in) Tripod thread 1/4 in (5/8 in with adapter) Pulse power for receiver yes Kit Includes: Leica Lino L6G Twist 250 magnetic adapter UAL 130 wall mount adapter Li-Ion battery pack Charger for Li-Ion battery pack Battery tray for Alkaline Target plate Quick start guide Calibration Certificate Blue Hard carry case UPC: 7640110699942 Enquiry Tell A Friend
