Description

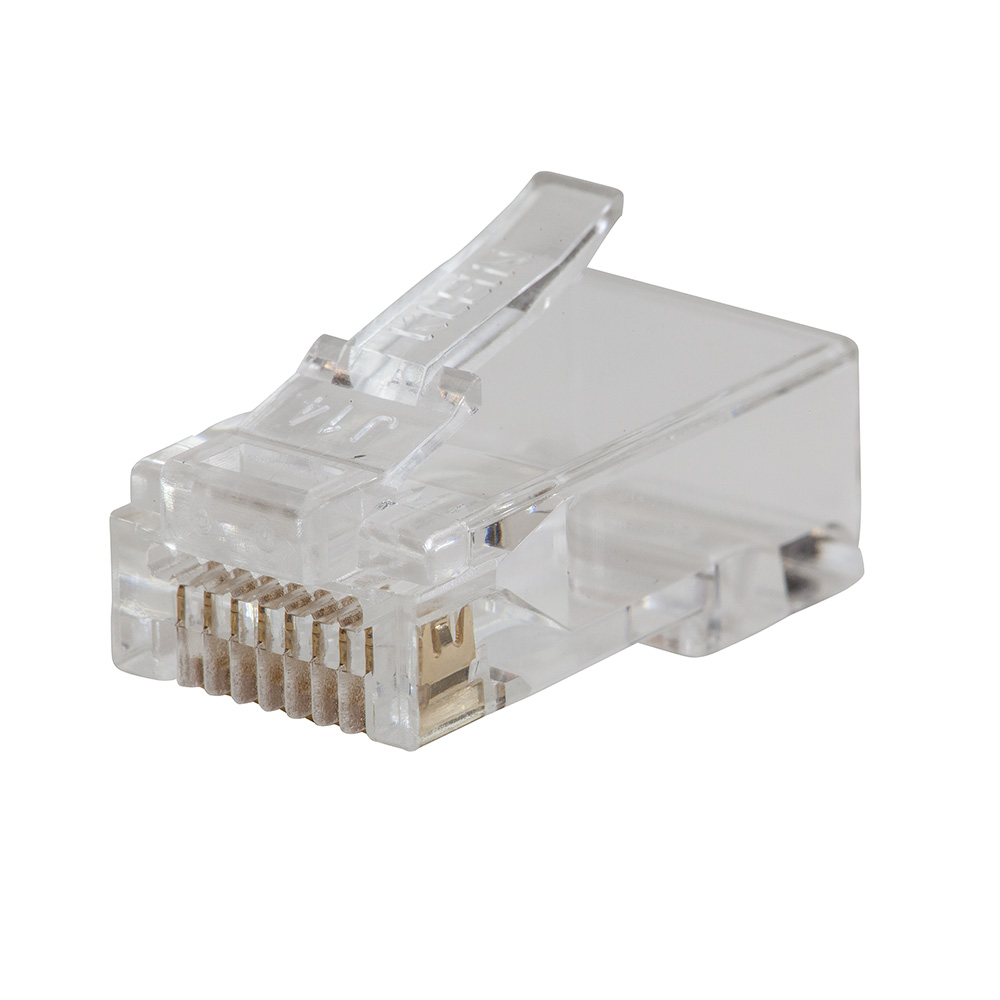

Product Description Description: Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Saves time, trims flush to the end face when used with Klein Tools’ Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials Features: Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations 50 µ-inch minimum gold plating on all contact surfaces Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant For use with the Klein Tools Pass-Thru™ Modular Crimper VDV226-110 10-pack 8 position, 8 contact pass-through style data plug for solid or stranded cable Max diameter for CAT5E Pass-Thru™ Connectors is 0.04” (1.01 mm) Specifications: Type: Modular Application: Voice and data Special Features: Pass-through technology Overall Length: 0.875” (2.2 cm) Overall Height: 0.453” (1.2 cm) Overall Width: 0.094” (0.2 cm) Material: PVC plastic; Gold-plated contacts Connector Type: RJ45 Cable Type: CAT5e Position & Contacts: 8P 8C Connector Colour: Clear Solid Conductor Wire: Yes Stranded Conductor Wire: Yes Package Quantity: 10 Weight: 1 oz (28 g) UPC: 092644690976 Enquiry Tell A Friend
