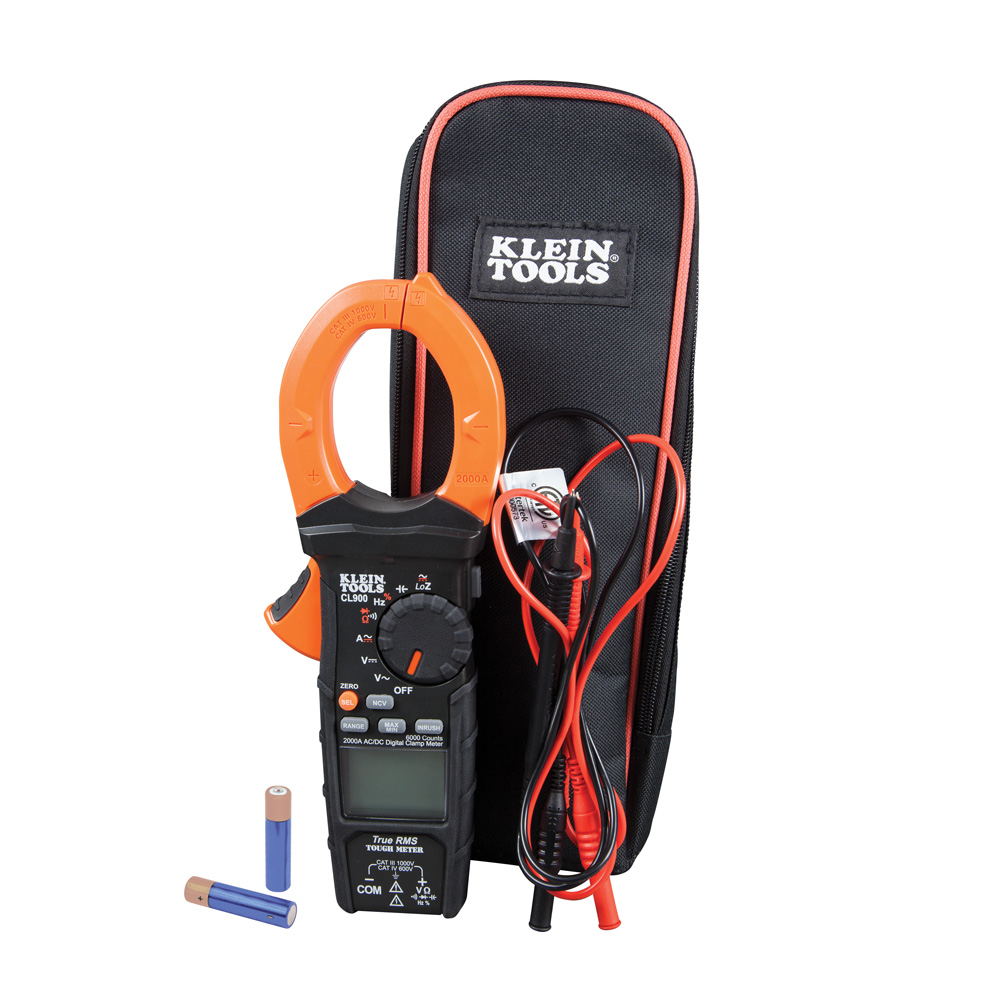

Product Description Description: The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp, and also measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via test-leads. It features a Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing inrush current Features: Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-foot (2m) drop Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating Back-lit display for clear visibility in environments with low ambient lighting Dedicated mode for capturing inrush current Non-contact voltage tester integrated into the clamp Low-impedance (LoZ) mode for identifying and eliminating ghost or stray voltage Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes Clamp measures AC and DC current Switches off automatically after 30 minutes of non-use to conserve battery life. Low-battery indicator and easily accessible battery compartment Includes carrying case (instruction manual), straight input test leads and 2 x AAA batteries Can be used with Magnetic Hanger, Cat. No. 69417 (sold separately) Specifications: Type: Clamp Meter Application: Measures current to 2,000 A AC/DC Special Features: Low-impedance (LoZ) mode; Dedicated mode for capturing inrush current; Integrated non-contact voltage tester Material: Plastic/electronics Batteries: 2 x AAA Auto Shut Off: Yes Jaw Size: 2” (5 cm) Drop Protection: 6.6′ (2 m) Display: 6,000-count LCD Functions: Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability, inrush current, low impedance Voltage: 1,000 V AC/DC Frequency: 500 kHz Current: 2,000 A AC/DC Capacitance: 6000µF Ohms (Resistance): 60MΩ AC Voltage: 1000 DC Voltage: 1000 DC Polarity Indicator: Yes DC Microamp: No Ingress Protection: IP40 Standard: CAT IV 600V, CAT III 1000V Overall Length: 10.39” (26.4 cm) Overall Height: 1.70” (4.3 cm) Overall Width: 3.90” (9.9 cm) Weight: 17.6 oz (499 g) Includes: Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries UPC: 092644692352 Enquiry Tell A Friend
